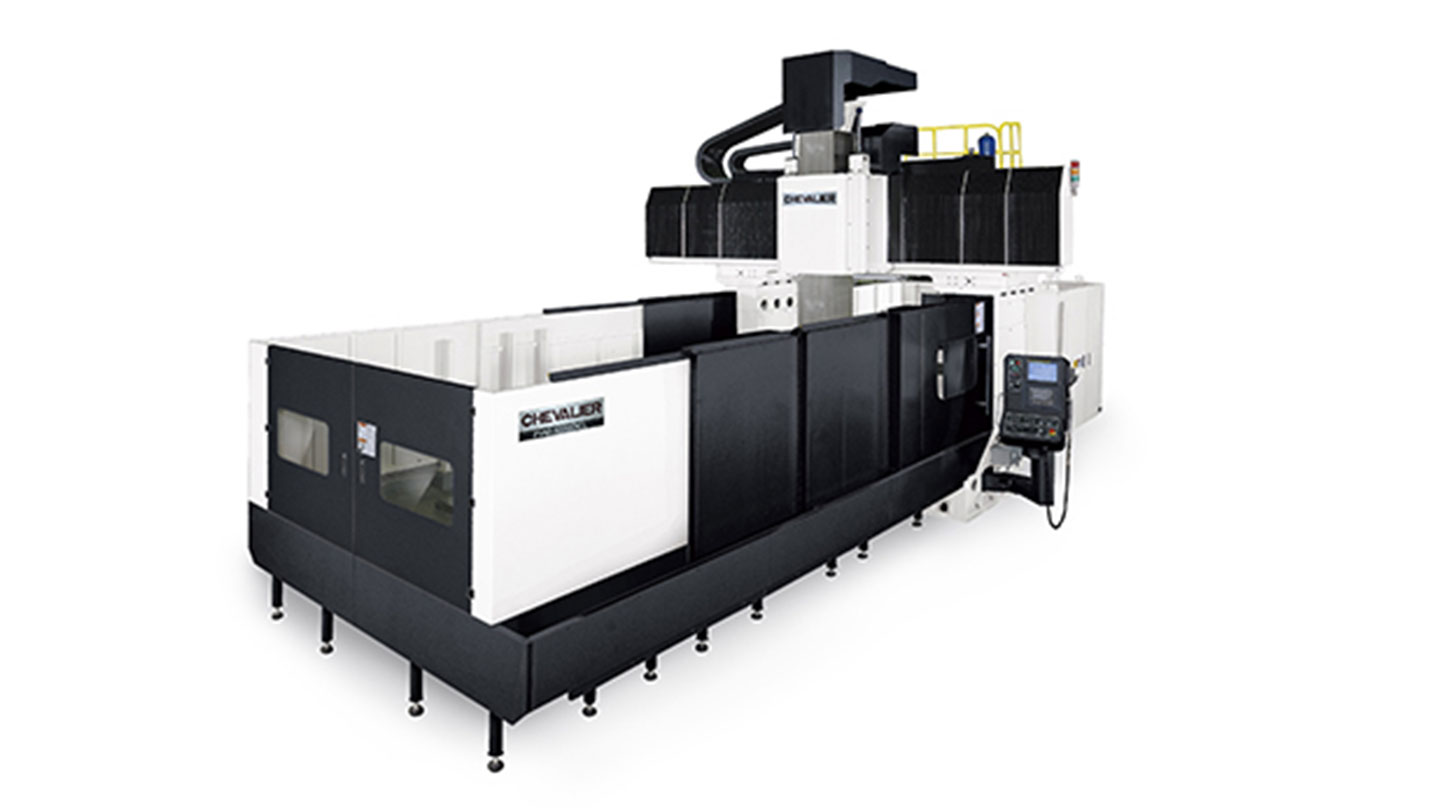

FVM 5022

About This Project


  • High rigidity construction provide high performance.
  • Linear ways design on X/Y axes, Heavy duty box ways on Z axis.
  • Five face milling head with ZF gear box for heavy and high speed cutting.
  • Perfectly designed coolant system and chip disposal system.
  • User friendly design and high performance control.
  • Universal chain type tool magazine.



  • Linear scale for X/Y/Z axes.
  • CNC rotary table.
  • Independent MPG for X/Y/Z axes(vertical type).
  • 60 tool ATC.
  • 40 tool horizontal and vertical ATC.
  • 60 tool horizontal and vertical ATC.
  • Automatic tool Length measuring system.
  • Coolant through spindle system.
  • 8000rpm direct drive spindle.
  • 10000rpm direct drive spindle.
  • 90 degree side milling head.
  • 45 degree side milling head.
  • Extension head(300mm).

Other dimensions on request


Download catalog

Contact us to commerciale@comispa.it to receive more information


Table Size (W x L): up to 1,450 x 4,100mm (57" x 161")

Table Load: up to 8,000kg (17,600 lbs.)

Travel X / Y / Z : up to 4,100 x 1,550 x 680mm (161" x 61" x 26.7")

Spindle Speed: 6,000rpm Gear/Optional 8,000rpm Belt Driven

Spindle Motor: 22kW (30HP)

Spindle Taper BT50 / CT50

Roller Guide Way Design
